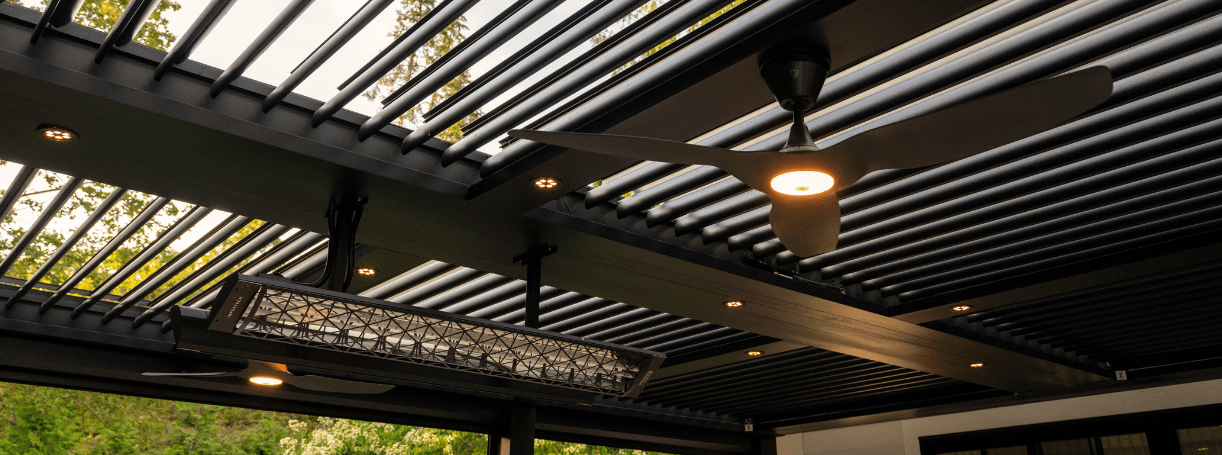

Design Your Perfect Outdoor Space
Choosing the right StruXure pergola roof profile completes the exact architectural aesthetic you want for your home. Selecting between a traditional look, a smooth interior ceiling style, or an expansive column-free span is a foundational step needed to customize your system. Every option brings a distinct visual presence to your outdoor living space, backed by careful engineering. This guide details the unique visual styles and structural capabilities of each louver, so you can confidently select the perfect match for your home.
Comparing Canopy Aesthetics and Engineering
Each louver profile—Pivot 6, Pivot 6 Flat, Pivot 6 MAX, and Pan 6—creates a unique look and offers specific structural advantages. The table below shows how these visual styles match up with their engineering capabilities.
| Louver Model | Visual Aesthetic | Engineering Capability | Ideal Use Case |
| Pivot 6 | Classic S-curve design | Patented & ICC-Certified design | Multi-purpose backyard patios |
| Pivot 6 Flat | Smooth, flush indoor ceiling look | Dual-wall condensation barrier | Integrated outdoor living rooms or high-end decks and patios |
| Pivot 6 MAX | Increased curvature design | Thick 2.75-inch reinforced frame | Expansive, column-free views |
| Pan 6 | Symmetric interlocking panels | Fixed stationary framing brackets | Permanent shade over kitchens or walks |
Detailed Breakdown of the Four Unique Profiles
These options bring a uniquely adaptable solution to your outdoor living space. Instead of forcing you to accept a one-size-fits-all cover, this specialized lineup allows you to select a specific design based on your personal priorities. You can achieve a finished interior ceiling look, maximize a wide landscape view, or secure permanent weather protection while maintaining a completely uniform look across your property.

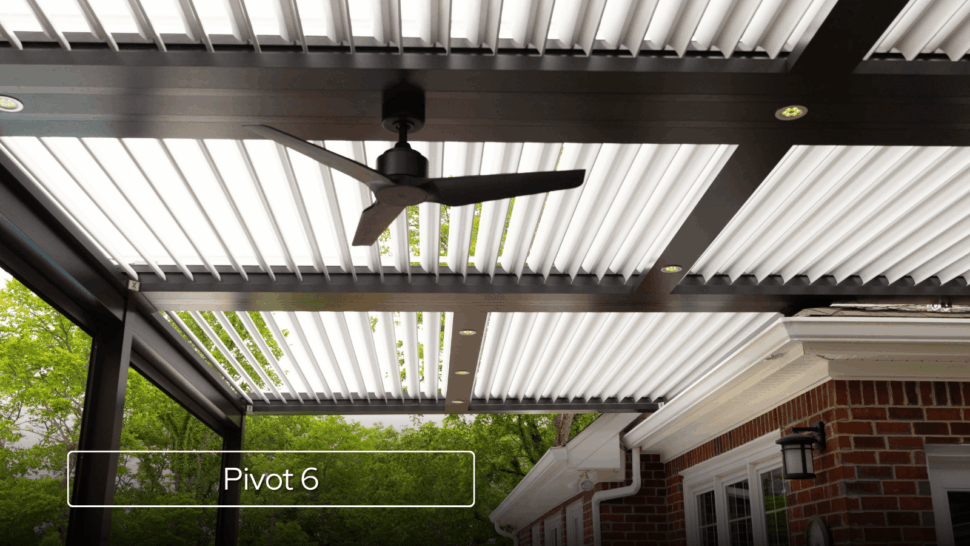

The Core Design: Pivot 6
The standard Pivot 6 profile features a signature S-curve design that complements any backyard layout. This patented design offers a full 155-degree rotation range, letting you track the sun precisely throughout the day. When closed, the integrated gutter system catches rain from every angle to keep your patio completely dry. Additionally, they are the only ICC-Certified louvers on the market, meaning they have passed rigorous independent testing for structural safety, wind resistance, and engineering compliance, making the local building permit process much smoother.
Its 6-inch width perfectly scales with most residential home designs, as its balanced dimensions provide excellent airflow when open without making the overhead ceiling look too heavy. It offers the ideal entry point for homeowners who want complete control over shifting daylight throughout the seasons.

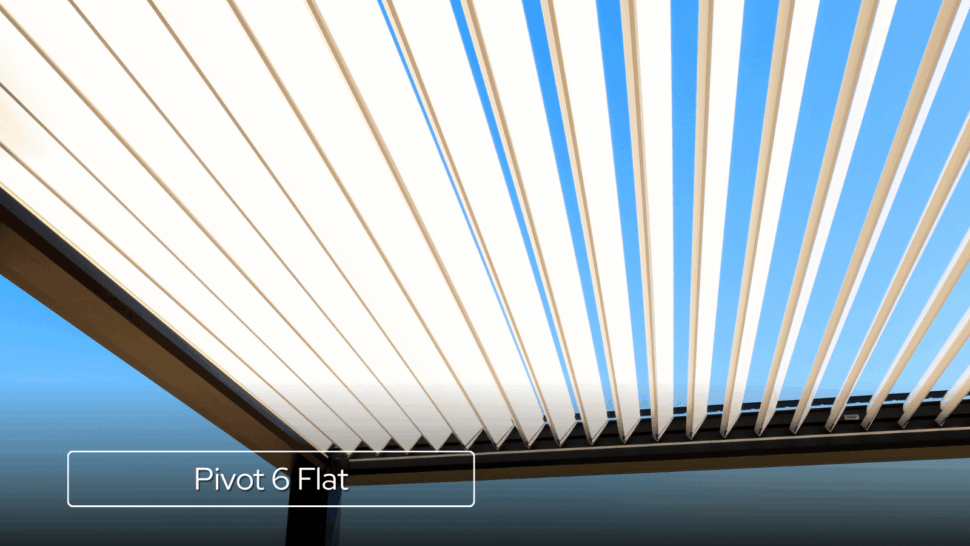

The Finished Ceiling Look: Pivot 6 Flat
The Pivot 6 Flat makes your outdoor space feel like an indoor room by hiding the traditional curved look of a shutter. When closed, the flat underside edges lock together to form a smooth tongue-and-groove ceiling plane. The louvers feature a hollow, dual-wall internal air chamber that stops temperature transfers, preventing condensation from dripping onto your outdoor furniture.
Crucially, this dual-wall engineering still maintains the classic water-channeling curves on the top side, ensuring hidden but highly efficient water management during heavy rain.
When you rotate the louvers open, you get a beautiful contrast between crisp geometric lines and natural sunlight. It works exceptionally well over outdoor dining tables and cozy seating areas where you want to mimic the intimacy of an indoor living room.

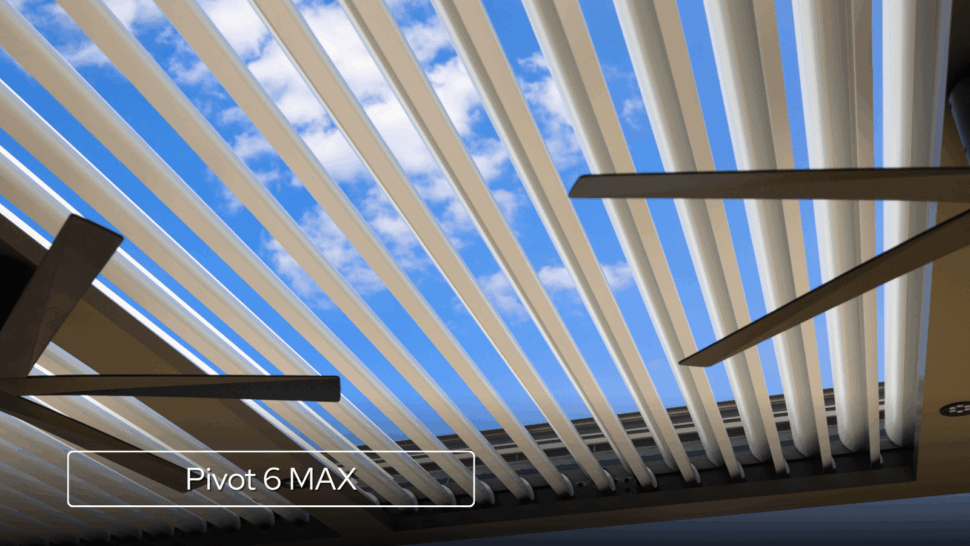

The Long-Span Option: Pivot 6 MAX
The Pivot 6 MAX is built for grand, open spaces where extra support columns would block your view. This profile features an increased curvature that allows for greater water management while making the aluminum much stiffer than standard slats. This extra strength allows individual pieces to span up to 16 feet safely. You get wide, open views combined with the same 155-degree motorized control found on the standard model.
The deeper top curve does double duty by maximizing structural rigidity and handling heavy downpours effortlessly. This heavy-duty engineering allows you to design large outdoor entertainment zones without installing disruptive center beams, keeping your horizon clear while giving you total peace of mind during intense weather events.

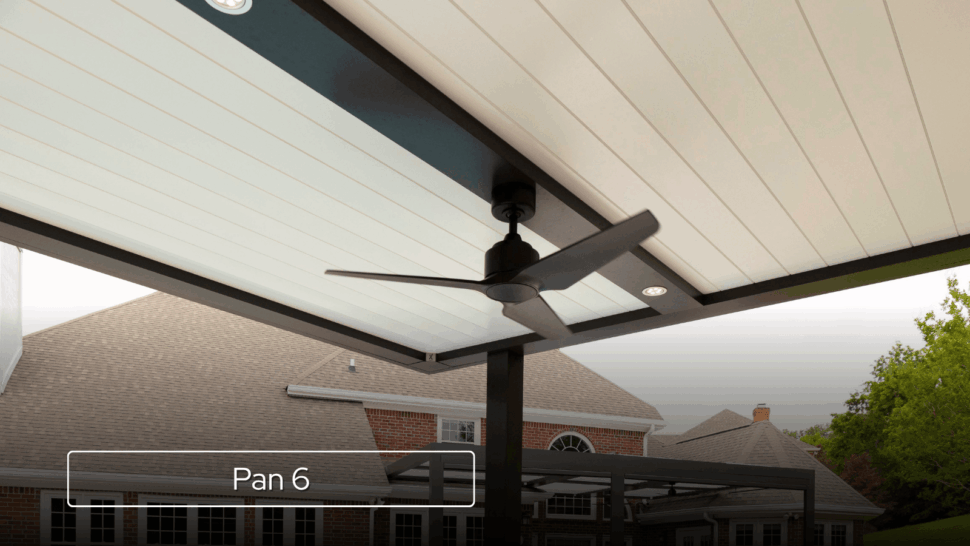

The Fixed Protection Anchor: Pan 6
The Pan 6 provides permanent shade while keeping a uniform look across your project. It matches the color options of the motorized models, blending into your layout perfectly. This configuration serves as a stationary panel option to cover walkways, side storage areas, or outdoor kitchens where you do not need changing light levels.
Using these fixed panels allows you to optimize your overall project budget by prioritizing motorization only where you need it. The interlocking fixed pans offer an ideal shield for sensitive outdoor appliances, like televisions or refrigerators, that require constant protection from the elements. You get absolute weather defense for your outdoor investments while matching the exact profile of your active zones.
How to Choose the Right Profile for Your Space
Selecting the ideal profile involves balancing your aesthetic goals with the practical realities of your outdoor layout. To determine which option—or combination of options—is best for your home, consider the following key factors:
- View and Footprint: If your primary goal is an unobstructed view of a pool, landscape, or horizon, prioritize the Pivot 6 MAX. Its 16-foot span eliminates the need for middle support columns that can break up your sightlines.
- Architectural Style: Match the profile to your home’s existing architecture. Traditional or transitional homes often pair beautifully with the classic S-curve of the Pivot 6. Modern, minimalist, or contemporary homes benefit from the clean, geometric lines of the Pivot 6 Flat.
- Functional Zones: Think about how you will use different areas of your patio. Dining spaces and outdoor living rooms thrive under the cozy, indoor feel of the Pivot 6 Flat. Conversely, dedicated grill stations or outdoor kitchen zones are perfect candidates for the permanent, low-maintenance shelter of the Pan 6.
- Budget Optimization: You don’t have to choose just one. Because all profiles fit the same universal frame, you can maximize your investment by using motorized louvers over your main seating area and more cost-effective fixed panels over walkways or storage zones.
Design Tip: Unsure where to place motorized versus fixed panels? Walk around your patio at different times of day to observe the light. Use motorized louvers over seating areas where you want to adjust for the changing sun, and reserve fixed panels for zones that require constant, absolute shade.
Choosing the right profile ensures your outdoor living area matches your design taste and structural needs. Whether you prefer the core versatility of the Pivot 6, the indoor feel of the Flat, the wide span of the MAX, or the steady reliability of the Pan 6, you can build a space without compromises.
Ready to see these different profiles in person? Connect with a local StruXure Dealer to review physical product samples and start your project.
Frequently Asked Questions
Can you mix different visual profiles within the same frame?
Yes. All four styles use the same universal StruXure pergola frame system. You can place a smooth pivoting-louver ceiling profile over your seating area and a fixed panel over your grill while keeping the overall look perfectly uniform.
Do the flat ceiling profiles channel rain as well as the curved ones?
Yes. The top side of the flat louver has the exact same water-channeling curve as the classic design. The curve is just hidden from view underneath.
