Award Winning Heart of America
Overview
This award-winning transformation in Carmel, Indiana, exemplifies how the union of precision engineering and material excellence redefines the potential of suburban outdoor living. By integrating a custom Pergola X system—crafted from fully extruded aluminum for unrivaled strength and longevity—into the home’s unique rear architecture, we achieved a seamless transition between interior spaces and the outdoors. The modular design and advanced canopy technology, including patented interlocking louvers and a concealed X-Drive motor, allowed us to mirror the home’s aesthetic with an intentional dual-tone palette, while accommodating intricate architectural angles unique to this residence. This project beautifully demonstrates how StruXure’s commitment to innovation, premium finishes, and tailored engineering can transform a traditional backyard into an elegantly functional, multi-purpose outdoor sanctuary.
- Model: Pergola X
- Configuration: Dual-Zone Pivot 6 louvers
- Color Scheme: White Platform / Black Louvers
- Integrations: Integrated LED Recessed Lighting, Ceiling Fan
- Surface: Premium Tiled/Paver Patio
Location
Carmel, Indiana
Dealer
The Smart Pergola
Products
Pergola X with Pivot 6 louvers
The Challenge
The primary obstacle for this residence was a common dilemma: a patio that was structurally sound but entirely exposed to the elements. The home’s rear exterior featured challenging angles and large glass entries from both the living room and a bedroom. These windows were subject to intense heat gain and direct weather.
Furthermore, the expansive, light-colored paver patio—a significant aesthetic investment—was vulnerable to the long-term effects of uncontrolled roof runoff. Without an integrated way to manage water and sunlight, the space remained an underutilized area rather than a comfortable, inviting extension of the home.
The Solution
The Pergola X was chosen for its remarkable adaptability and suite of proprietary innovations—hallmarks that set StruXure apart from conventional solutions. Engineered around the home’s intricate roofline and angular walls, the system leverages robust, fully extruded aluminum components for superior longevity and seamless precision. The patented interlocking louvers, driven by a concealed smart motor, ensure watertight performance even in challenging conditions.

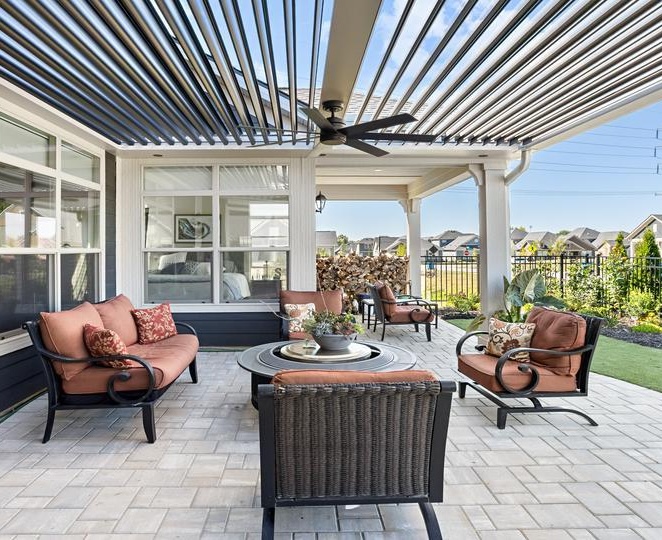

For flawless visual integration, the support posts and frame feature a crisp white powder-coated finish that perfectly captures the home’s trim accents, while the Pivot 6 louvers are rendered in black to merge with the dark siding when closed, achieving a refined and sophisticated contrast. By installing the system directly against the house, the design team effectively expanded it’s footprint, creating a sheltered sanctuary that serves as a shared porch for the main living area and the primary bedroom.
Technical Features
- Architectural Color-Matching: A dual-tone finish where the white frame mirrors the exterior trim and black louvers disappear into the house’s dark paint scheme.

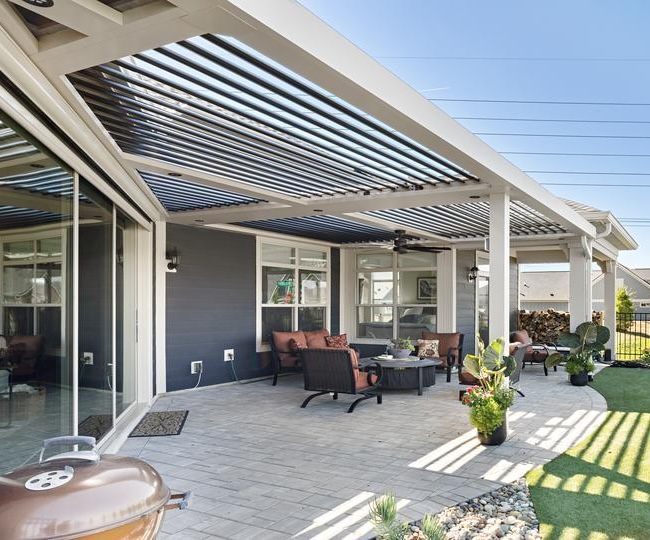

- Precision Angle Integration: Custom-cut frame components designed to sit flush against the home’s multi-angled exterior walls—an exclusive capability of StruXure.
- Preservation Engineering (Integrated Gutters): An internal gutter system that captures water at the louvers and directs it cleanly through the posts. This high-capacity water management protects the light pavers from staining and keeps yard irrigation perfectly balanced.
- Pivot 6 louver Technology: A full range of motion that allows for 170° rotation, enabling you to track the sun or seal the roof entirely for rain protection.

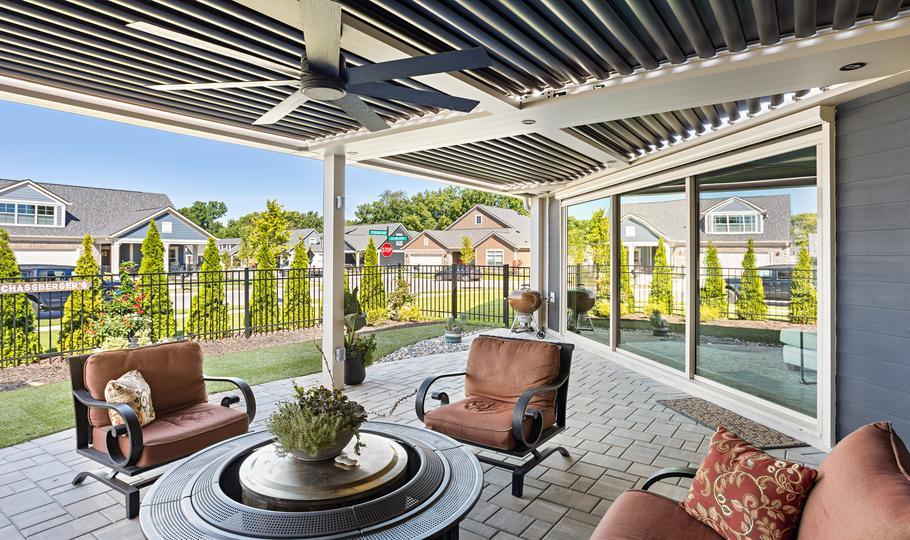

- Concealed Power & Wiring: All electrical for the recessed lighting and the center-mounted fan routes internally, maintaining a clean, polished architectural profile.
The Design Verdict
Architectural Harmony
Instead of feeling like an add-on, the Pergola X acts as a structural completion of the house. The color-matched posts and louvers ensure the system remains visually quiet, allowing the architectural lines of the home to remain the primary focus.
Environmental Intelligence
With the simple touch of a button, the space adapts to your exact needs. Whether you angle the louvers to catch a gentle cross-breeze or close them tight during a summer rainstorm, our premium engineering ensures your outdoor plans are never canceled.
Asset Protection
Advanced drainage engineering does far more than keep your outdoor furniture dry—it actively preserves your home’s exterior investment. By managing water through internal post-drainage, the system prevents the pooling that typically erodes patio aesthetics.
The Lifestyle Shift
This space has gracefully evolved from a simple patio into the most frequented destination in the house. By bridging the gap between the living room and the bedroom with a structure that looks and feels like it was always there, this project proves that world-class outdoor living is about effortless flow.
The homeowners now benefit from thoughtful innovations found only in StruXure systems—seamless automation, robust American-made construction, and discreet integration of technology—all contributing to everyday enjoyment with striking, enduring beauty. Whether stepping out from the bedroom for a quiet morning coffee or hosting friends through the living room, they enjoy a dedicated oasis that is protected, polished, and perfectly tailored to their lifestyle, demonstrating the full value of precision, quality, and design leadership.
