Award-Winning Custom A-Frame Sanctuary
Overview
Elegant Outdoor Living Meets Advanced Protection
This award-winning project by Beach Outdoor Living highlights the elegance and versatility of the StruXure Pergola X. Designed as an 18’ x 20’ custom A-Frame (Gable), the structure combines fully extruded aluminum components—renowned for their unrivaled strength and longevity—with a patented interlocking louver design that offers superior weather protection. This advanced system complements an outdoor kitchen and masonry fireplace, delivering both architectural impact and precise climate control. Seamless integration of internal wiring for lighting, cooling, and future heating ensures a refined, high-performance space that stands as a true indoor-outdoor sanctuary.
By integrating the Pivot 6 louver system into an elevated gable-roof profile, the installation provides a dramatic sense of scale. It offers an invisible infrastructure of internal wiring for lighting, cooling, and future heating. The result is a seamless, all-season pavilion that preserves the open-air feel of the landscape while providing the total protection of a permanent indoor room.
Project Highlights:
- Model: Pergola X (Pivot 6 louvers)
- Configuration: Custom A-Frame / Gable End
- Dimensions: 18’ Wide x 20’ Long x 10’ High
- Color Palette: Black Powder-Coat Finish
- Key Integration: Beam mounted fans, LED lighting, 240V internal pre-wiring (future-ready for Infratech heaters)
Dealer
Beach Outdoor Living
Products
Pergola X with Pivot 6 louvers
The Challenge:
Crafting a Grand Outdoor Room Without Compromise
Before the transformation, this vast patio—anchored by a hand-laid stone fireplace and gourmet kitchen—faced several challenges familiar to anyone investing in luxury outdoor spaces on the coast:
Relentless Sun Exposure
Unshielded seating and dining areas often became unusable at mid-day, as direct sunlight made stone surfaces uncomfortably hot.
Vulnerability to Weather
Expensive appliances and plush seating battled the elements, demanding ongoing maintenance and limiting the outdoor fireplace’s use to the rarest clear evenings.
Lack of Intimate Scale
Though skillful landscaping and pavers outlined the patio’s footprint, the absence of an overhead “ceiling” left the space feeling exposed and incomplete.
These pain points created boundaries on relaxation and entertaining—boundaries the clients were eager to erase in pursuit of true year-round outdoor living.
The Solution:
Architectural Innovation with StruXure Pergola X A-Frame
To echo the estate’s grand architecture and resolve the environmental challenges, Beach Outdoor Living collaborated with the client to design a custom Pergola X in a dramatic A-Frame configuration. This gable-inspired silhouette amplified the outdoor space’s volume while introducing an essential sense of enclosure, without ever feeling confined.
Product Choice
To match the grand scale of the existing stonework, a standard flat-roof pergola simply wouldn’t suffice. The answer was a custom-built StruXure Pergola X designed in a dramatic A-Frame configuration, distinguished by advanced engineering and thoughtful integration of StruXure’s key innovations. This structure leverages the strength of fully extruded aluminum components—engineered for unmatched durability and resistance to environmental stresses—while the patented interlocking louver design ensures complete protection from rain, channeling water seamlessly into the integrated 360 gutter system.
Aesthetic Integration
The A-frame structure mirrors the stately rooflines of the home, while the black powder-coated finish provides a contemporary edge that harmonizes with the masonry’s natural palette. All electrical and mechanical systems are concealed within clean architectural lines, maintaining uninterrupted elegance.
Smart Configuration

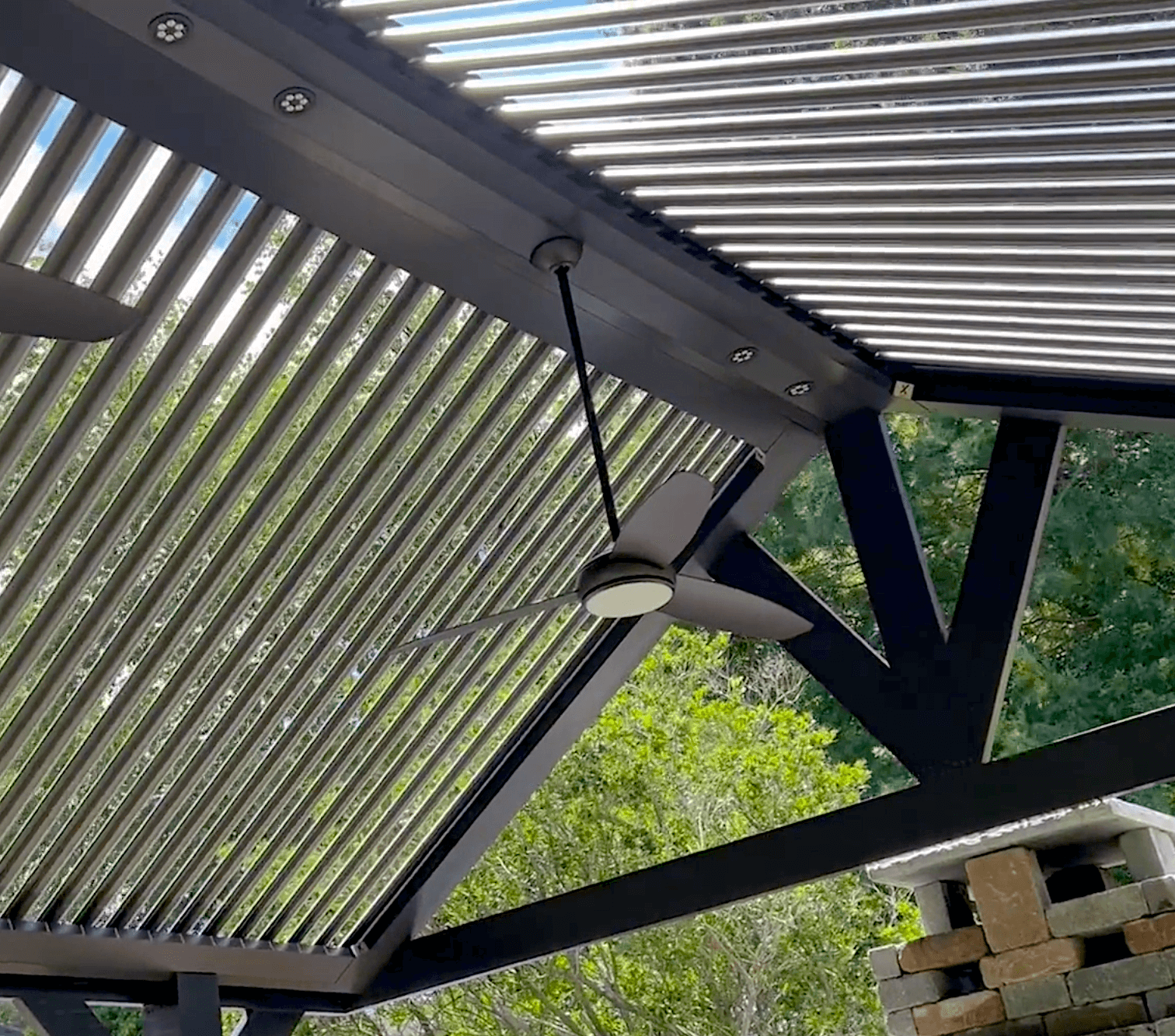

Elevated ridge beams house integrated fans and LED lighting, ensuring comfort from morning to night. The built-in infrastructure is future-ready, pre-wired for Infratech heating to deliver warmth when cooler breezes arrive. The open gable peak naturally encourages air movement, passively cooling the space before the fans even engage.
Technical Features:
Where Innovation Meets Endurance
Key Engineering and Design Components:
- Pivot 6 Motorized Louver System: 170-degree motorized range for optimal sun, rain, and airflow management.
- Integrated Beam Tech: Centralized location for dual fans and LED lighting, all wiring concealed for polished aesthetics.
- Durable Materials: Powder-coated aluminum construction resists corrosion and harsh coastal elements, delivering lasting beauty with minimal upkeep.
- Internal Pre-wiring: 240V infrastructure inside the beams and gable, supporting present and future heating solutions without visible conduits.
- All-Season Adaptability: Adaptive design supports both summer heat mitigation and winter warmth, maximizing usage throughout the year.
The Design Verdict: Architectural Harmony and Everyday Convenience
Architectural Synergy
With its striking vertical lines and gabled form, the Pergola X A-Frame becomes a defining architectural element—seamlessly extending the elegance of the estate outdoors and adding a distinctive presence to the landscape.
Environmental Intelligence
The smart louver technology fosters a responsive environment. Sun, shade, or rain—enjoy the outdoors on your terms. Passive cooling through the gable, combined with smart-integrated fans, ensures a climate-controlled oasis.
Year-Round Usability
From a shaded breakfast nook to an illuminated night-time lounge, the pavilion invites use throughout all four seasons. Maintenance is effortless, reliability is built in, and premium materials ensure that the beauty endures.
The Lifestyle Shift:
From Patio to Sanctuary
The transformation is profound. What began as a periodically usable patio has become a versatile, year-round retreat. Mornings start with tranquil coffee under dappled light, while evenings transition into vibrant gatherings warmed by the fire. The Pergola X A-Frame didn’t merely add cover; it unlocked a new era of living—one defined by elegance, comfort, and a newfound connection to outdoor enjoyment.
